Характеристики
| Параметр |
Значение |
| Производитель: |
QJZ |
| MPN: |
6203-2RS-60% |
| Bearing & Bushing Part Type: |

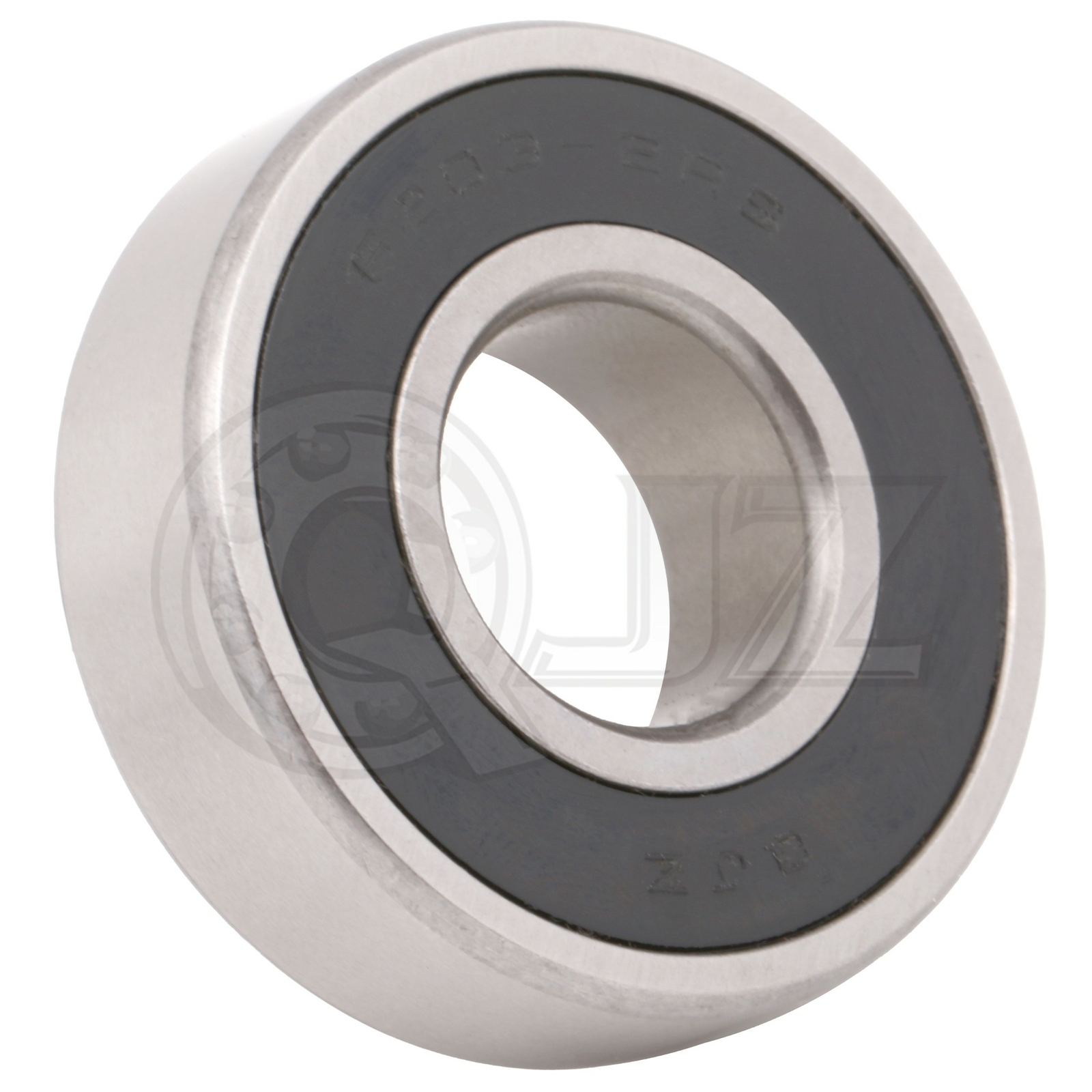

Deep Groove Single Row Radial Ball Bearing |
| Модель: |
6203-60%-2RS ; 6203-2RS-60% |
| warranty: |
30-Days FREE RETURN;1-Year Buyer-Protection Warranty |
| Shipping Service: |
[FREE SHIPPING By Standard Priority/Ground Mail Service] |
| Shipment Awareness: |
[Shipment Only Proceed On Regular Business Days] |
| Office Hours: |
[M-F ; 8:00AM PST-5:00PM PST] |
| Shipping & Handling: |
[Order By [1:00 PM PST] For SAME-DAY Priority Shipping] |
| [OD]Outer Diameter(MM): |
40 MM |
| [W]Width(MM): |
12 MM |
| [ID]Inner Diameter(MM): |
17 MM |
| Dynamic Load Capacity: |
9577 |
| Operating Temperature Range: |
120° to 248° |
| Closure Type: |
Two Contact Seals |
| Fillet Radius: |
0.0236 in |
| Static Load Capacity: |
4786 lbs |
| Maximum RPM: |
20000 RPM |
| Material:: |
Chrome Steel SAE-52100 |
| Lubrications: |
Chevron SRI-2 Grease |
| Dynamic Load Rating (Cr): |
9550 N |
| Static Load Rating (Cor): |
4800 N |
| Ball Dia (Dw): |
6.747 MM |
| Max. Shaft Shoulder Dia. Inner (Ui): |
24.9 mm |
| Bore: |
Straight |
| Internal Clearance: |
C3 |
| Precision Rating: |
ABEC 1 |
| Series: |
6200-Series |
| Precision Class: |
ISO Normal/ABEC1 |
| Row Type & Fill Slot: |
Single Row Non-Fill Slot |
| Radius (min) (rs): |
0.60 MM |
| Ball Quantity: |
8-Count |
| Min. Housing Shoulder Dia., Outer (Uo): |
35.8 MM |
| Alternative Numbers 1: |
6203,6203RS,6203Z,6203DDU,6203LLU,6203VV,6203-2NSE,6203.2RSJ1 |
| Alternative Numbers 2: |
6203.2RSR,6203-2RU,203PP,203KSZZ,6203-2NSL,99203,6L025,5972K44 |
| Alternative Numbers 3: |
6153K77,6203ZZ,6203.2ZJ1,6203.2ZR,6203-2Z,203KDD,77203,203KSFF |
| Alternative Numbers 4: |
1L016,5972K2,6153K57,203K,6203J1,6203,203KS,CG425,6203LHX3 |
| Alternative Numbers 5: |
RIT Bearing 6203-2rs;EBC 6203-2RS C3BULK;SKF 6203-2RSJEM |
| Alternative Numbers 6: |
KOYO 62032RDC3;NTN 6203LLBC3/EM;NSK 6203VVC3;TIMKEN P203PP |
| Alternative Numbers 7: |
FAG BEARING 6203-2RSR;NACHI 6203-2NKE9-C3;Timken 6203-2RS |
| Alternative Numbers 8: |
Consolidated Bearing B6203-2RS;Peer Bearing 6203-2RLAD-C3 |
| Alternative Numbers 9: |
General Bearing Corporation 6203-2RS;Shuster Corporation 62032rs |
| Country of Origin: |
China |
| Универсальный товарный код: |
00748139311153 |
